Laser level with 16 lines Huepar LS04CG with 2 batteries, case, bracket, platform, adapter, and target

16 Lines Laser Level Huepar LS04CG with 2 Batteries Case Bracket Platform Adapter and Target

Professional Solution for Perfect Alignment in Four Planes

The Huepar LS04CG laser level is a high-tech construction tool that projects four mutually perpendicular 360-degree planes. Two horizontal and two vertical lines cross at 90-degree angles, allowing users to quickly and flawlessly complete complex layouts, square room designs, partition installations, and point transfers. The integration of bright Osram green laser units ensures unparalleled visibility of the beams even under intense lighting conditions, significantly accelerating the workflow on any job site.

Specialized Floor and Ceiling Lines with a Lifting Base

The design of this laser level is specifically engineered to meet the needs of interior finishing masters. The top 360° horizontal laser plane is positioned as close to the ceiling as possible, making it an ideal tool for hanging and suspended ceiling installations. The bottom horizontal plane is designed for floor tiling, laminate setups, and screed leveling. Thanks to the included adjustable lifting base (elevator), the laser lines can be smoothly raised to a height between 2.54 cm and 9 cm, allowing it to successfully project over uneven floor surfaces, construction debris, or other obstacles during operation.

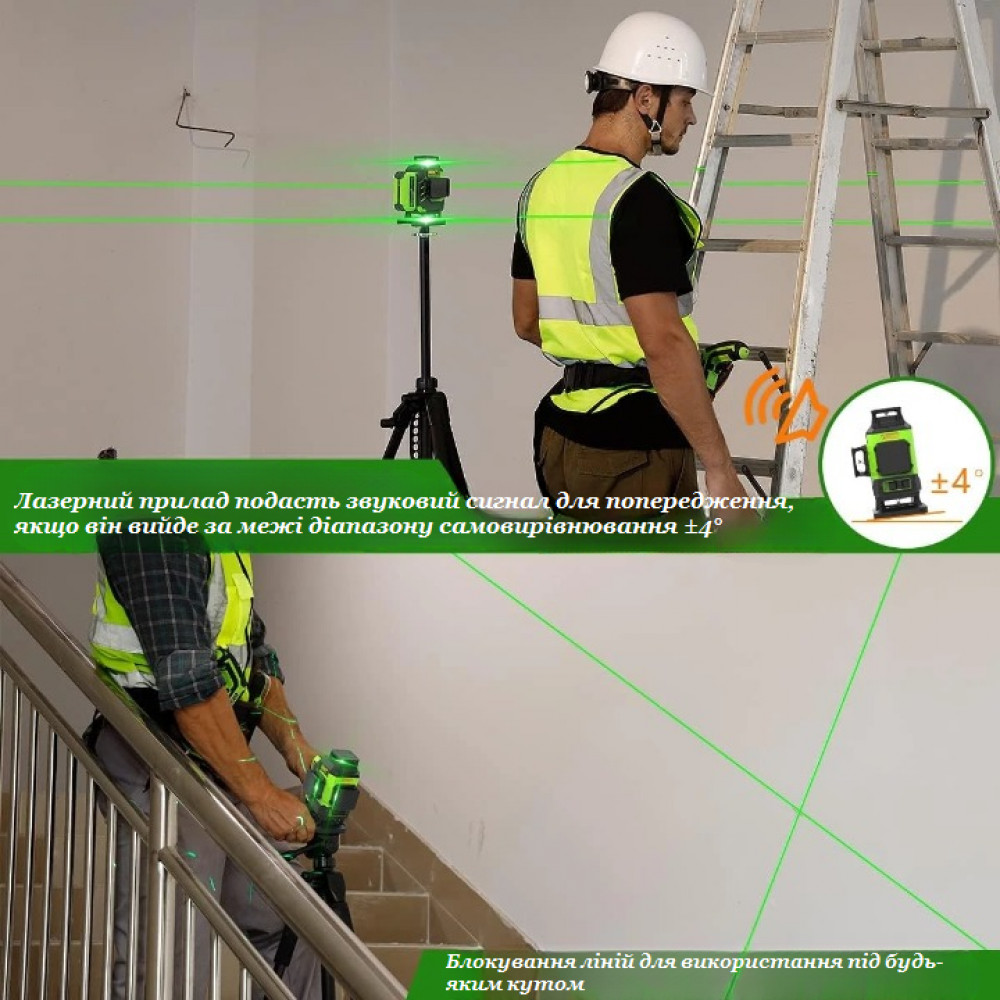

Automatic Self-Leveling and Manual Sloped Mode

The smart pendulum system of the laser level activates the self-leveling mode immediately once the lock is released. If the device is placed on a surface with an incline exceeding its working self-leveling range of 4 degrees, the tool emits a beeping sound and the green beams blink rapidly. This completely eliminates the risk of measurement errors during layout creation. To project sloped lines at any custom angle, simply lock the pendulum to switch to manual mode, where the beams will blink warningly once every few seconds.

Continuous Operation with Two Powerful Batteries

The kit includes two independent 5200 mAh lithium-ion battery packs. This ensures an uninterrupted workflow on the construction site: while one battery powers the tool, the second one can be charging. Each battery pack features its own Type-C port, allowing it to be charged separately from the device using a power adapter, a laptop, a power bank, or a car charger. Four LED indicators on the battery clearly display the current charge level and power status.

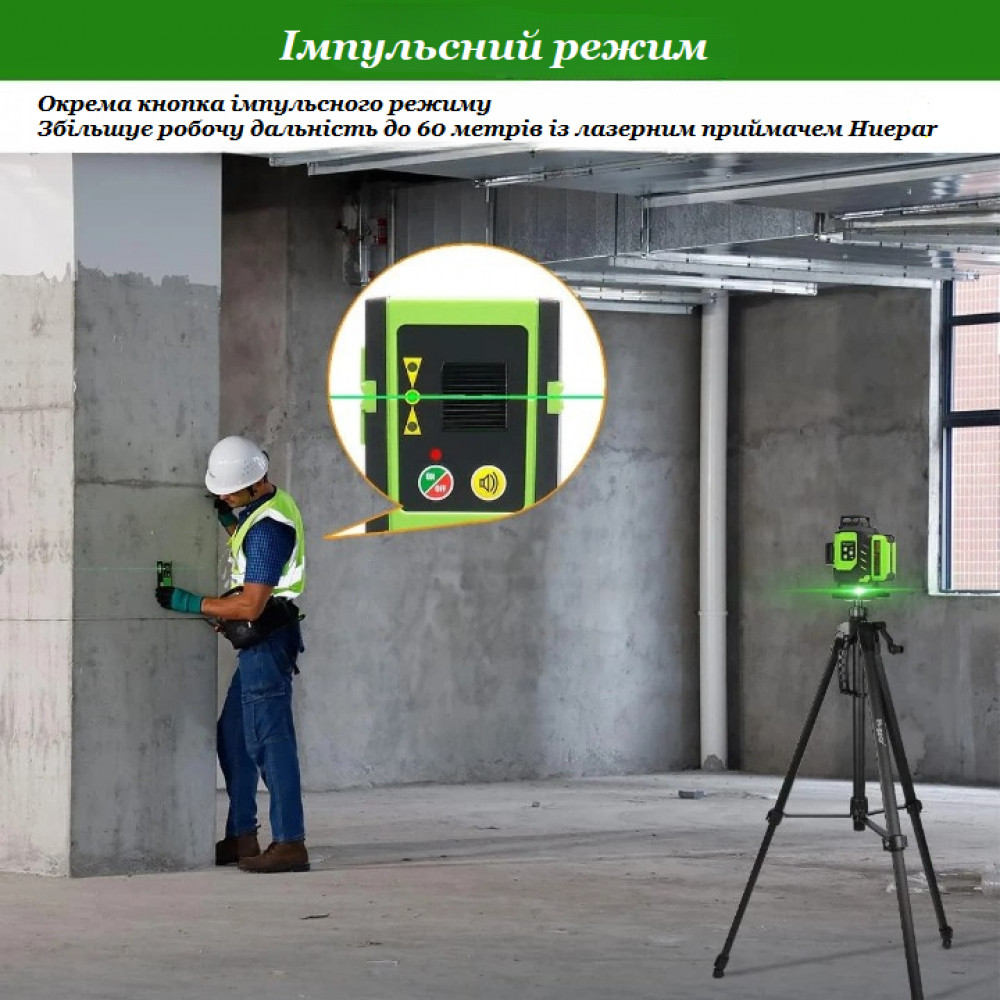

Pulse Mode for Long-Distance Tasks

For large-scale construction jobs or layouts in outdoor open environments, the laser level features a pulse mode activated by a short press of the power button. This mode enables the tool to work in tandem with special laser receivers (compatible with Huepar LR-6RG and LR-5RG models). Utilizing a detector extends the working distance to over 50 meters, ensuring stable beam registration even in bright daylight conditions.

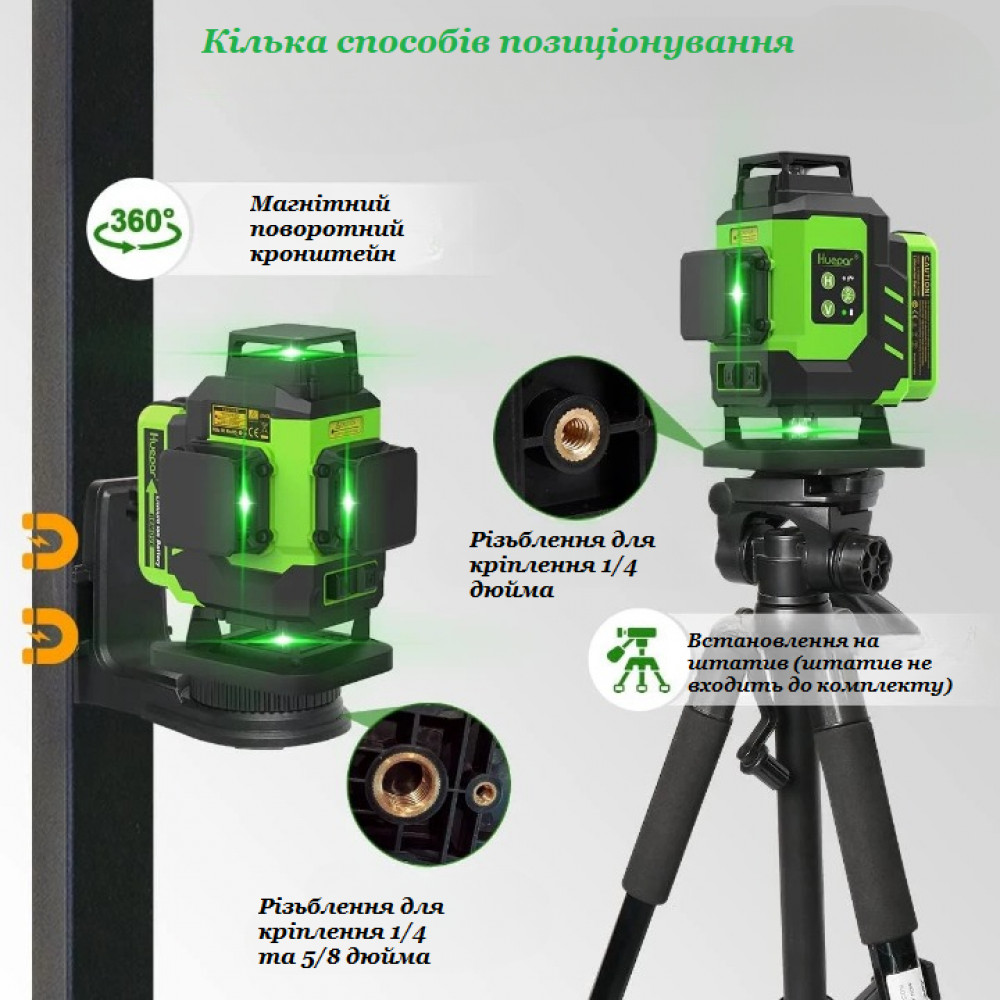

Secure Mounting and Heavy-Duty Construction Design

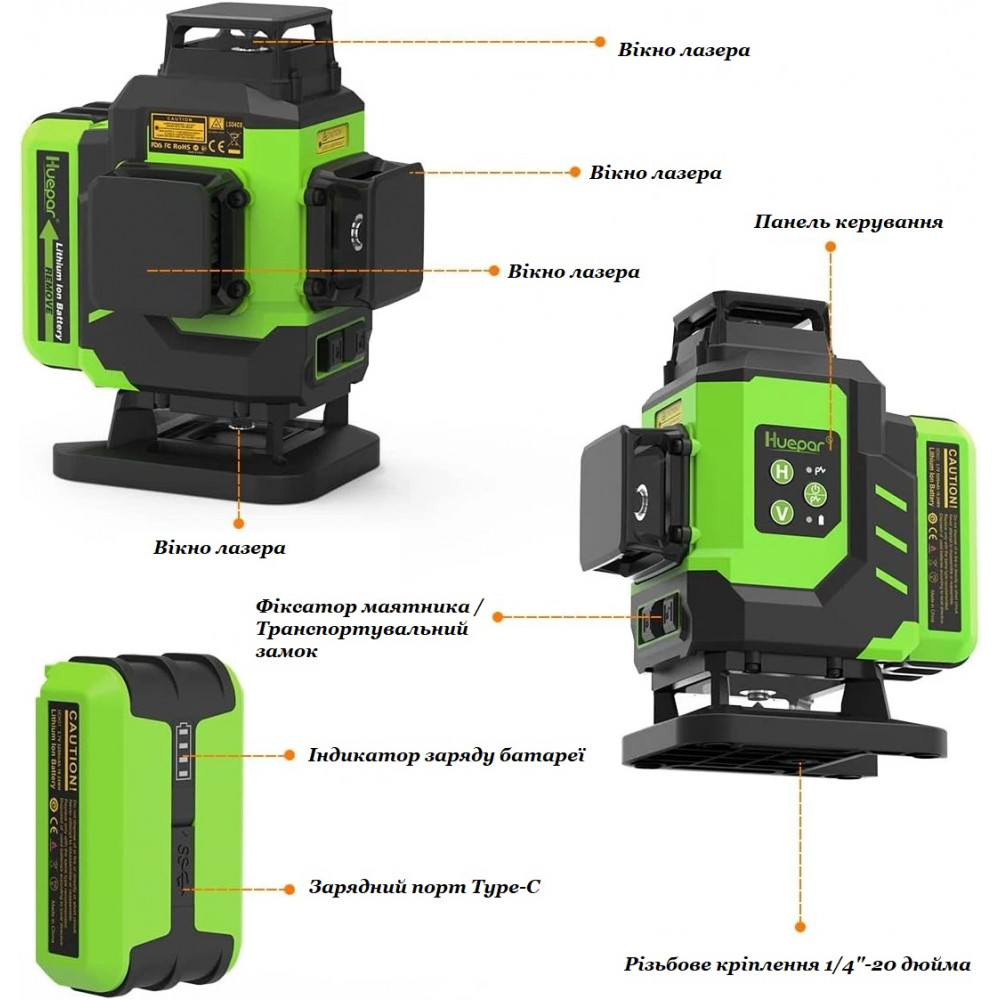

The included 360-degree strong magnetic bracket allows for quick and secure positioning of the laser level onto metal studs, profiles, or pipes during wall applications. The laser level housing itself features a 1/4-inch female thread, and the bracket is additionally equipped with both 1/4-inch and 5/8-inch mounting threads to suit all types of construction tripods and poles. The device features an IP54 protection rating, shielding it from dust, water splashes, and accidental impacts, while the protective laser window glass covers are designed as replaceable elements that can be easily swapped using a standard screwdriver if damaged.

Technical Characteristics

• Brand: Huepar

• Country of Brand Registration: China

• Product Group: Laser levels and lines

• Purpose: High-precision projection of vertical and horizontal planes for construction, decoration, tiling, and installation tasks

• Condition: new

• Features: Bright Osram green laser units, two 360-degree planes for floors and ceilings, audible and visual out-of-level indicators, pulse mode operation, separate line control via H and V buttons, replaceable protective laser windows

• Material: Plastic, rubber, metal, glass

• Color: Green, black

• Gender: unisex

• Laser Class: Class 2 (IEC/EN60825-1/2014)

• Number of Laser Lines: 16 lines (two 360° horizontal planes and two 360° vertical planes)

• Laser Wavelength: 505–520 nm

• Leveling Accuracy: ±3 mm at a distance of 10 meters

• Self-Leveling Range: ±4°

• Working Distance without Receiver: 30 meters

• Working Distance with Receiver: over 50 meters

• Power Source: 3.7 V / 5200 mAh lithium-ion rechargeable batteries

• Operating Time with One Battery: over 5 hours with all 16 laser lines continuously on

• Charging Time for One Battery: 5 hours

• IP Rating: IP54 dust-proof, waterproof, and shockproof

• Mount Thread Size: 1/4-inch on the laser level body, 1/4-inch and 5/8-inch on the magnetic bracket

• Lifting Base Height Adjustment Range: from 2.54 cm to 9 cm

• Charging Interface: Type-C

• Package Contents: 4D green tiling laser level LS04CG, 2 rechargeable Li-ion batteries, hard plastic carry case for transport and storage, 360° magnetic bracket, lifting base, power adapter, Type-C cord, green laser target plate, user manual

• Compatibility: Compatible with Huepar LR-6RG and LR-5RG laser receiver-detectors to extend the beam range, compatible with construction tripods, telescopic mounting poles, and wall mounts with standard 1/4-inch and 5/8-inch threads, compatible with mobile phones, laptops, and power banks for emergency battery recharging via Type-C cable
