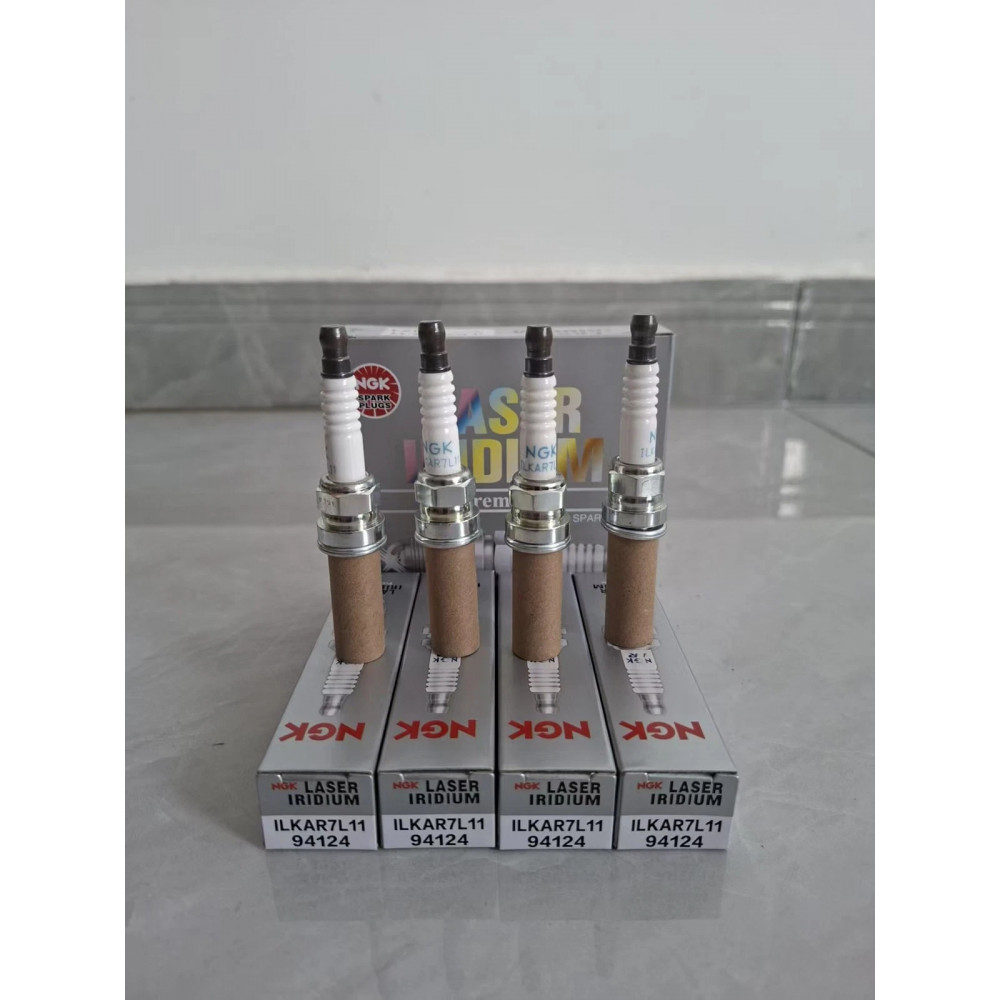

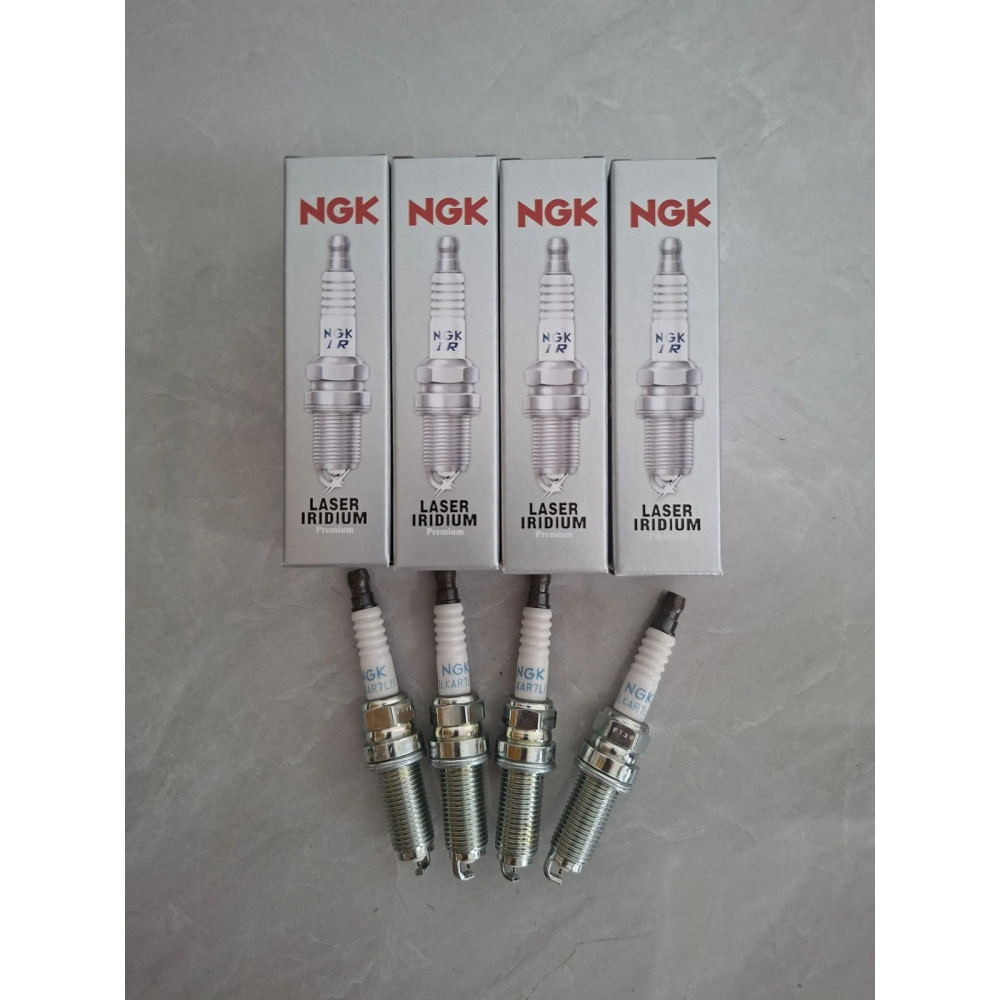

Set of 4 NGK 94124 Laser Iridium Spark Plugs ILKAR7L11 for Mazda 3 2014, 6 2014, CX-5 2014

Set of 4 NGK 94124 Laser Iridium Spark Plugs ILKAR7L11 for Mazda 3 2014, 6 2014, CX-5 2014

Innovative Design for SkyActiv Engines

This set of NGK Laser Iridium spark plugs is designed to meet the stringent ignition requirements of modern Japanese engines with high compression ratios. The uniqueness of the ILKAR7L11 model lies in the use of an iridium-tipped center electrode and a platinum-tipped ground electrode. Iridium alloy is six times harder than platinum and has a significantly higher melting point, which allows for maintaining a stable spark gap throughout the service life and prevents metal erosion under critical temperature loads.

Spark Stability and Longevity

The use of laser welding to secure precious metals on the electrodes ensures unmatched structural strength. The ultra-thin tip of the iridium electrode concentrates the electric charge, requiring less voltage from the ignition coil to produce a spark. This guarantees a quick cold start of the engine in winter and prevents misfires at high RPMs. The platinum insert on the side electrode minimizes its burnout, allowing the plugs to work steadily up to 100,000 kilometers, maintaining the engine's original performance characteristics.

Protective Properties and Sealing

The metal body of the spark plug has a special galvanic coating that prevents corrosion and facilitates the removal of the part during scheduled maintenance. The insulator made of high-purity alumina ceramic has high dielectric strength, preventing voltage breakdown to the body. The internal seal made of a mixture of glass powder and graphite ensures complete sealing of the connection between the center electrode and the terminal, preventing gas leakage from the cylinder and overheating of ignition system elements.

Compatibility and Precision Fit

The NGK 94124 spark plugs are an original (OEM) solution for a wide range of Mazda SkyActiv-G engines. The geometric parameters of the thread and heat range are specially calibrated for operation under the high thermal stress conditions of these cars' combustion chambers.The plugs are fully suitable for installation on the following vehicles:

• Mazda 3 (BM/BN) with 2.0 and 2.5-liter engines from 2012–2016.

• Mazda 6 (GJ/GL) with 2.0 and 2.5-liter engines from 2014–2016.

• Mazda CX-5 (KE) with 2.0 and 2.5-liter engines from 2013–2015.Using these plugs on the specified models guarantees the preservation of factory fuel consumption parameters and acceleration dynamics.

Technical Specifications

• Brand: NGK

• Brand Registration Country: Japan

• Product Group: Spark Plugs

• Material: Iridium, Platinum, Ceramic, Steel, Copper

• Size: Thread M12 x 1.25, Thread Length 26.5 mm, Hex 14 mm

• Color: Silver, White

• Weight: 180 g

• Condition: New

• Gender: Unisex

• Manufacturer's Marking: ILKAR7L11

• Stock Number: 94124

• Center Electrode Type: Iridium Needle

• Side Electrode Type: With Platinum Insert

• Thread Pitch: 1.25 mm

• Spark Gap: 1.1 mm

• Heat Range: 7

• Purpose: Ignition of the Fuel-Air Mixture in Engine Cylinders

• Compatibility: Mazda 3 (2012-2016), Mazda 6 (2014-2016), Mazda CX-5 (2013-2015)

• Package Contents: 4 Spark Plugs in Individual Packages, Overall Cardboard Box

• Connection Type: Solid Terminal

• Seal Type: External Sealing Ring
